TH350 X TOYOTA L/C 19 SPLINE

SKU: 50-7401
$806.08
excluding shipping
GM TH350 to Toyota Land Cruiser 19 spline transfer case Adapter Kit
Availability:
i h
Digital Downloads

Advance Adapter

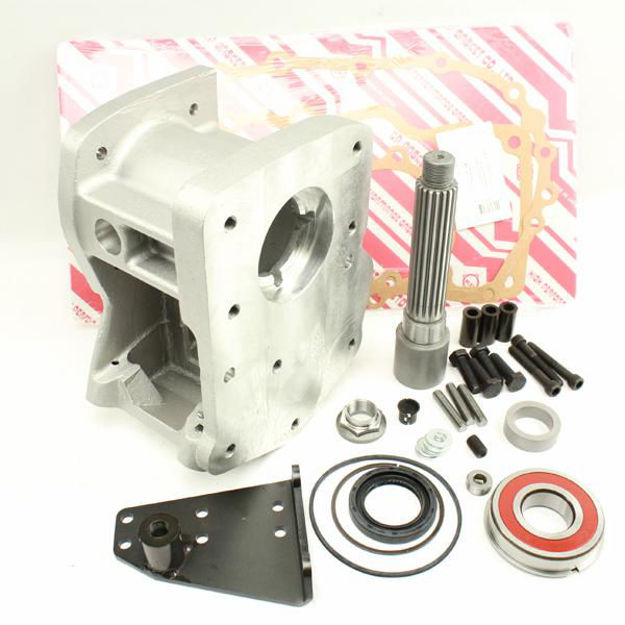

The TH350 adapter to the Land Cruiser 19 spline transfer case is 6.750” in length. And the overall length of the transmission and adapter is 26.94”. The adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter housing, 19 spline spud shaft, new TH350 output shaft, transfer case shifter bracket, transfer case input seal, sealed bearing, gaskets, fastening hardware, and adapter instructions..

Transfer Case

This adapter assembly fits August 1980 to 1989 transfer cases. The transfer case design was changed to a split-case design configuration with a 19 tooth internal spline on the input gear.

Transmission

This adapter kit is designed for exclusive use with the GM TH350 automatic transmission. This GM automatic was commonly found stock in vehicles from 1969-81. It was used in both pickups and car applications. The TH350 has aluminum, 1 piece case and is 21.5” in length. It was used in both the 4WD pickups and 2WD applications. These transmissions are identical except when it comes to the output shaft stickout length. The 4WD transmission used an adapter to bolt this transmission to its stock transfer case. With this adapter removed, the stock output shaft protrudes from the back of the transmission case approximately 1”. On 2WD vehicles, these transmissions used 3 different tailhousings. The lengths of these tailhousings are 6”, 9”, and 12”. The output shafts lengths correspond with these tailhousing lengths. This transmission is one of the most popular choices for engine and transmission conversions due to the overall length of 21-1/2”. The 1st gear ratio is 2.52:1; 2nd 1.52:1, and a 3rd gear ratio of 1:1.

Bill Of Materials

Products specifications
Transfer Cases Toyota Land Cruiser (August 1980-1990) - (19 Spline Input)
Transmissions GM TH350 Automatic 2 Wheel Drive GM 1972-1984
Transmissions GM TH350 Automatic 4 Wheel Drive GM 1972-1984
*
*
*
