TIE ROD- TOYOTA 25.5 OAL

SKU: 716831
$53.34
excluding shipping

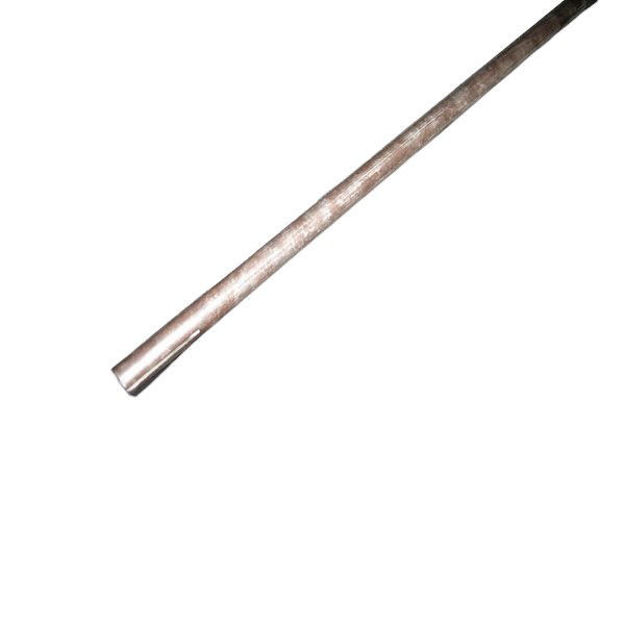

Toyota Land Cruiser conversion tie rod (25- 1/2")
+ -

Advance Adapters

This tie rod, Part # 716831 for the Toyota Land Cruiser, has a special left hand metric thread and one right hand American thread. This 25 ½" tie rod connects to the Saginaw pitman arm and then to the stock Land Cruiser tie rod end located on the passenger side. Care should be taken for the proper fit of the tie rod end's taper and threads when installing into the Pitman arm. In some cases, it may be necessary to use two or three washers on the top side of the Pitman Arm so that the threads on the tie rod end will secure the proper taper fit. All tie rod ends must be secured with a castle nut and cotter pin. All tie rod-to-tie rod end connections must have a tie rod clamp installed with a bolt, lock washer, and nut. We DO NOT find it acceptable to cut and weld the tie rods.

Products specifications
Model FJ40
Make Toyota
*
*
*
