INT. GEAR 1-1/4 KIT

Advance Adapters

If your Dana Spicer 18 transfer case is worn out and making noise like the latest boy-band, it's probably the intermediate shaft and bearings. Highway driving accelerates the wear.

These kits are available for Jeep Dana 18 cases 1946-53 with a an 1/1/8” intermediate shaft, or Jeeps 1953-79 with 1-1/4” intermediate shaft to fit the stock cluster gear. Our kits use tapered roller bearings and a new shaft that aid in the noise reduction of your stock transfer case.

This kit fits Dana 18/20 with 1-1/4” intermediate shaft.

Refer to P/N 716006 if your Dana 18 is 1946-53 model year with a 1-1/8” intermediate shaft.

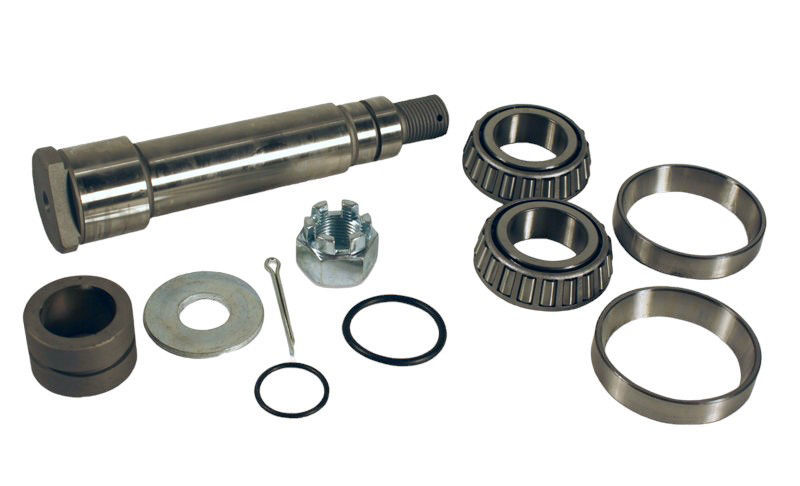

Bill Of Materials

• SHAFT- D18 INTERMEDIATE 1.25 / 716028
• BUSHING- INTERMEDIATE GEAR 1.25 / 716029
• BEARING CUP L44610 from A14 set / 716304
• BEARING CONE L44643 from A14 set / 716305
• O-RING (1-1/4)BUNA (300358) / 716708
• O-RING-AS568A-018 (7/8) / 716710
• COTTER PIN 3/32 X 1-1/4 / 720005
• FLAT WASHER SAE 9/16 / 725605
• 5/8 FLAT WASHER SAE OD / 726207
• CASTLE NUT 5/8 -18 X 1/2 PL / 726201
