Advance Adapter
Newly manufactured cast bellhousing designed to replicate the stock Jeep OEM version. Works great for Jeep 4.2 & 4.0L engine retrofit projects with NV3550 and AX15 transmissions.

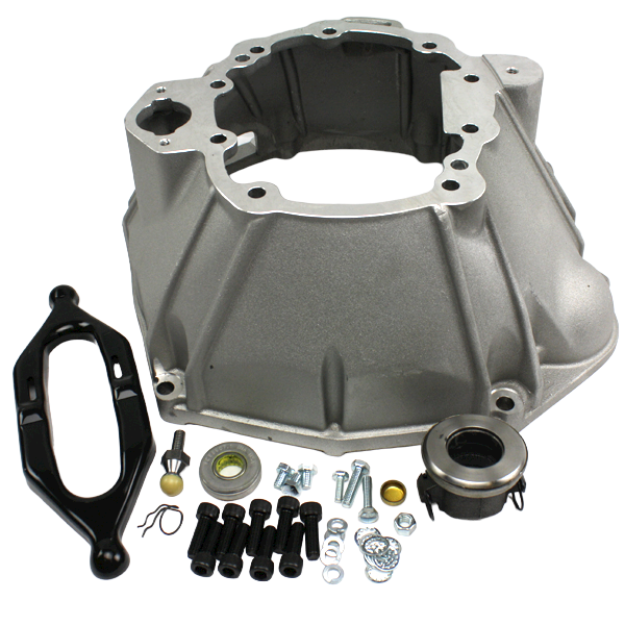

The bellhousing kit includes a Jeep bellhousing, release lever, release bearing, pilot bushing that fits .750" pilot tip, and fastening hardware. Our new bellhousings are available with the 2005/06 4.0L new flywheel sensor location.
Replaces the Jeep bellhousing 52107552
This bellhousing works with all Jeep 4.0L up to 2006.
Note: AX15's 1989-1993 had an internal release bearing and a .590 pilot tip. When using this bellhousing on these transmissions you will also need a new front transmission bearing retainer PN716210 and a different pilot bushing PN716156GM or check out kit PN712590-IR
Options
P/N 716340 New Jeep NV3550 / AX15 external slave cylinder assembly.
Bill Of Materials
Products specifications
|
Transmissions
|
New Venture NV3550 Manual 4 Wheel Drive Jeep 2000-2004 |
|
Transmissions
|
Asin AX-15 Manual 4 Wheel Drive Jeep 1989-1999 |
|
Engine
|
AMC 242 CID 4.0L Inline 6 |
|
Engine
|
AMC 258 CID 4.2L Inline 6 |
|
Engine
|
AMC V8 |
