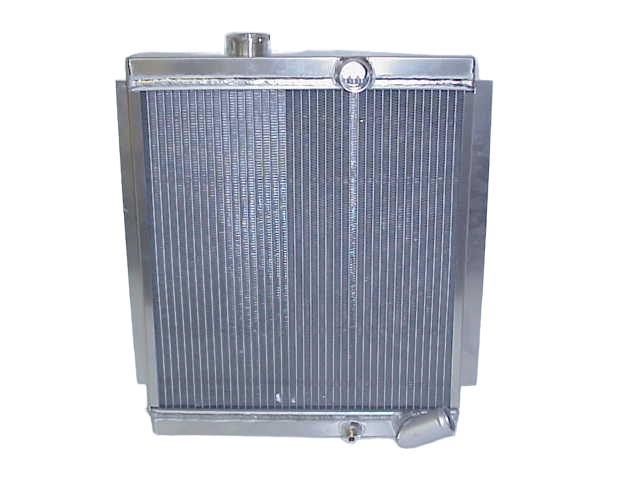

RADIATOR-M38A1 (CJ5) 1971 & EARLIER GM V8 MANUAL
2 Row Radiator (1" tubes) Down-flow
Side mounting flanges welded to core: 1.5" x 17.5" x .080"
Core Size = 17" W x 18" H
Over All = 19.5" W (flanges) x 21" Tank to Tank, 22" Tank to filler neck)
1.5" inlet, 2.5” left (drivers) from center
1.750" outlet bottom right (passenger) pointing at engine
Filler neck location center, top of tank
Drain Port: 3/8 NPT, lower drivers side tank pointing at engine
Fitment based on:
1952-1964 Jeep M38A1 w/ GM V6/V8
Note: Does not have bottom brackets for extra motor mount bracing rods used on M38A1 only
Could also fit:
1955-1971 Jeep CJ5, CJ6 w/GM V6/V8
1965-1973 Jeep DJ5, DJ6
1965-1973 Jeep DJ6
