SKU: 713088-W
excluding shipping
GM LS1 engine universal mount kit (wide)
+ -

Advance Adapter

These sturdy weld-in engine mounts allow the installer to fine-tune the engine placement according to transmission placement or other needs. A double rubber cushion on each side provides vibration isolation at the ends of the two mounts. The rubber cushions are secured with a large 5/8" diameter bolt. The engine side mounts have slots in them so you can position the engine closer to one side of the frame.

Frame widths 25.35" to 31.35"

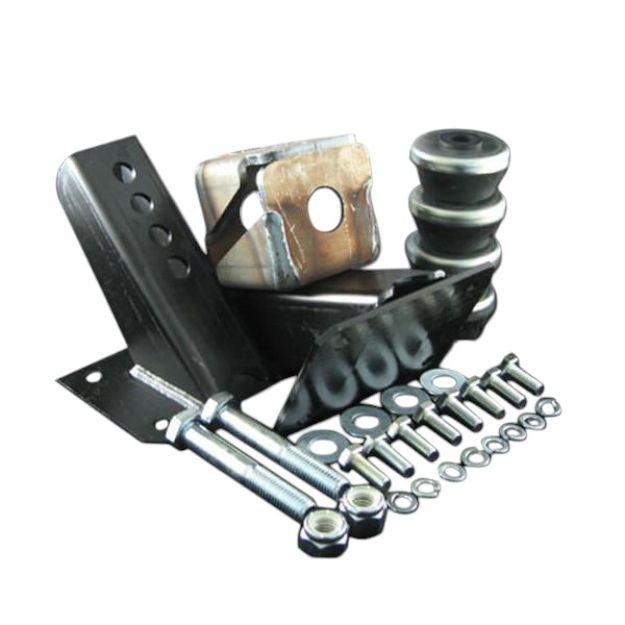

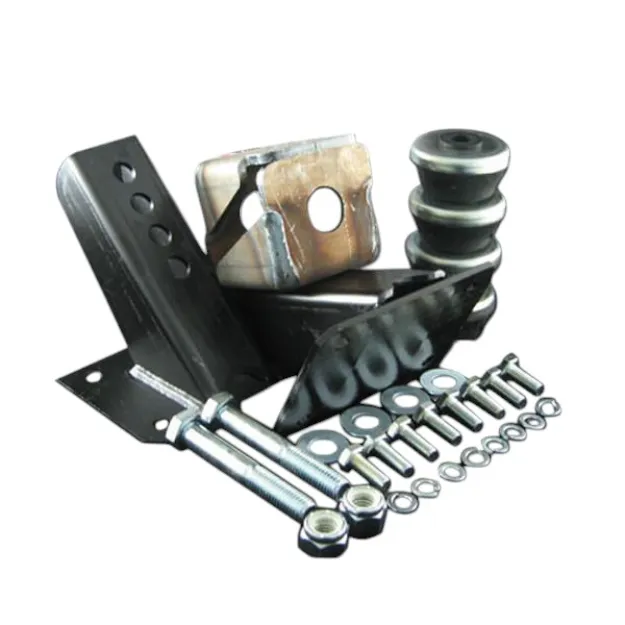

The engine mount kit includes two engine side mounts, two weld-in gusseted frame mounts, and rubber mount kit.

Note: These engine mounts fit the new Gen III / IV, LS-Series V8. The mounts have been designed to use with Truck exhaust manifolds or rear dump headers and will interfere with car (Corvette / Camaro / Trans-Am) exhaust manifolds.

Note: These engine / motor mounts are commonly used with Jeep YJ Wrangler and Jeep CJ Models

Bill Of Materials

Products specifications
Model Scout II
Model Scout 800
Model Scout 80
Model J Series
Model Willys Truck
Model Willys Wagon
Model Grand Wagoneer
Model Wagoneer
Model YJ Wrangler
Model CJ8
Model CJ7
Make International Harvester
Model CJ6
Model CJ5
Engine Chevy LS Series Gen III & IV
Make Jeep
