4L80E X TOYOTA L/C 16 SPLINE

SKU: 50-1601
$662.17
excluding shipping
GM 4L80E 4 speed automatic transmission to the 1974-80 Land Cruiser 16 spline transfer case,adapter kit.
+ -

Advance Adapter

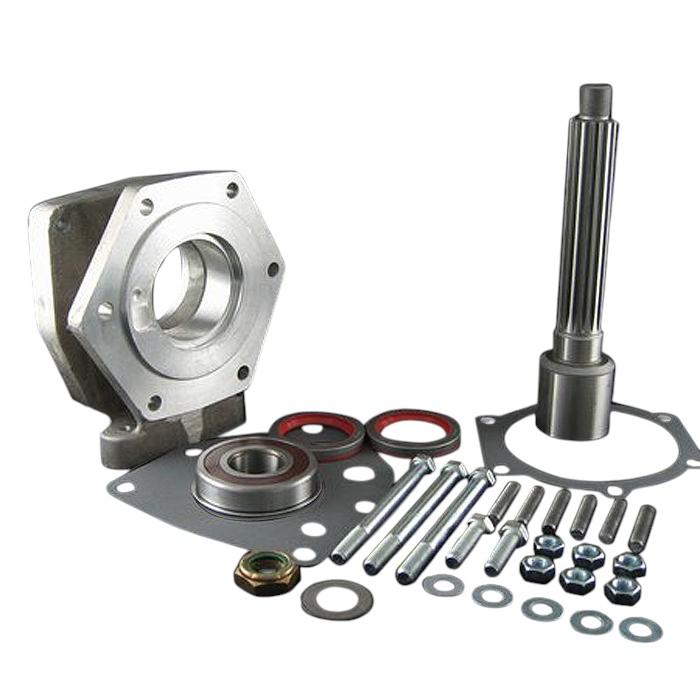

The 4L80E adapter to the Land Cruiser 16 spline transfer case is 2.69” in length. And the overall length of the transmission and adapter is 28.69”. The adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter housing, 16 spline spud shaft, sealed bearing, gaskets, fastening hardware, and adapter instructions.

Transfer Case

This adapter assembly fits 1974 to July 1980 16 spline transfer cases. The drive gear has 16 internal splines and a diameter of 1.259”. The transfer case bolt pattern is the same as the earlier 3 speed transfer cases.

Transmission

The adapter kit is designed for exclusive use with the GM 4L80E 4wd. A GM 4L80E output shaft speed sensor must be used. This transmission is similar to the TH400 except that it is electronically controlled and has an overdrive. This transmission does not use a reluctor ring like the 4L60E. The 4L80E transmission is normally equipped with an internal reluctor ring on both the transmission input shaft and output shaft. The computer takes both of these readings in for the proper shifting and operation of this transmission. We have always ignored the reluctor ring requirement for this transmission since it is internally regulated. We have now learned that the rear reluctor ring is not always installed into the transmission. The basic rule of thumb is 4WD transmissions up to 1996 should have a rear reluctor ring in the main transmission case. All 2WD transmission should have the rear reluctor in the main transmission case, and the 1997 & newer 4WD 4L80E transmissions have a sensor provision; however, the reluctor ring in the transmission is left out. The tailhousing bolt pattern is the same as the TH400, but indexed with a different diameter. There are several lengths of the stock 2WD transmission output shaft and only one length of the 4WD. When designing our kit, we standardized off of the 4WD output shaft. The 1st gear ratio is 2.482; 2nd 1.482; 3rd 1.1, and a 4th gear ratio of .75. Before installing your transmission make sure it is equipped with the rear reluctor ring.

Options

P/N 716022 Crossmember. This popular mount bolts to that back of the transfer case.

P/N 716004 Crossmember. This mount bolts to our transfer case adapter.

Bill Of Materials

Products specifications
Transmissions GM 4L85E (MN8) Automatic 4 Wheel Drive GM 1991-2006
Transmissions GM 4L80E (MT1) Automatic 4 Wheel Drive GM 1991-2006
Transfer Cases Toyota Land Cruiser (1974-July 1980) - (16 Spline Input)
*
*
*
