GM SM465 2WD/JEEP DANA 300 SHT

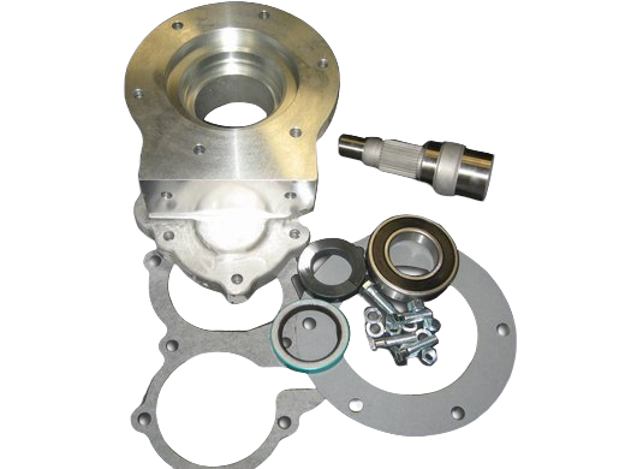

Advance Adapter This adapter kit will allow you to adapt the GM SM465 2wd, 4 speed transmission to the Jeep Dana 300 transfer case. The adapter is 3.5 in length and is made from strong 356 T-6 heat treated aluminum alloy. The adapter kit includes a adapter housing, new Dana 300 35 spline input shaft, gaskets, seal, fastening hardware, and adapter instructions. Transfer Case The adapter assembly fits the1980-86 Jeep Dana 300. Transmission This adapter assembly is designed for exclusive use with the 2wd, GM SM465 4 speed manual with a 35 spline output shaft. This top loaded heavy-duty transmission has a cast iron case, and is 12" in length. It was used in GM trucks from 1968 to 1988. The SM465 was used in both 2wd & 4wd applications with 3 various output shaft spline counts of 10, 32, & 35 splines.

Bill Of Materials

• CLAMP COLLAR- 1-1/2 2PC / 716457
• GASKET-SM465 / 716515
• GASKET-N.P.208 TRANSFER CASE / 716517
• ADAPTER- SM465 TO D300 & Atlas / 51-9807
• SHAFT- D300 INPUT 35T GM / 52-0203
• SEALED BEARING 209RS / 716308
• SEAL FOR NEW VENTURE ADAPTERS / 716749
• H.H.C.S. 3/8 -16 X 1-1/2 gr. 5 zinc / 723723
• 3/8 -16 X 1-1/2 S.H.C.S. zinc / 723740
• NUT 3/8 -16 PLATED GRD 5 / 723701
• LOCK WASHER 3/8 ZINC / 723704
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
