AX15 or NV3550 TO JEEP 4.0 BELLHOUSING 2005 - 06

Advance Adapter

Remanufactured cast bellhousing just like the stock Jeep OEM version. Works great for Jeep 4.2 & 4.0L engine retrofit projects with NV3550 and AX15 transmissions.

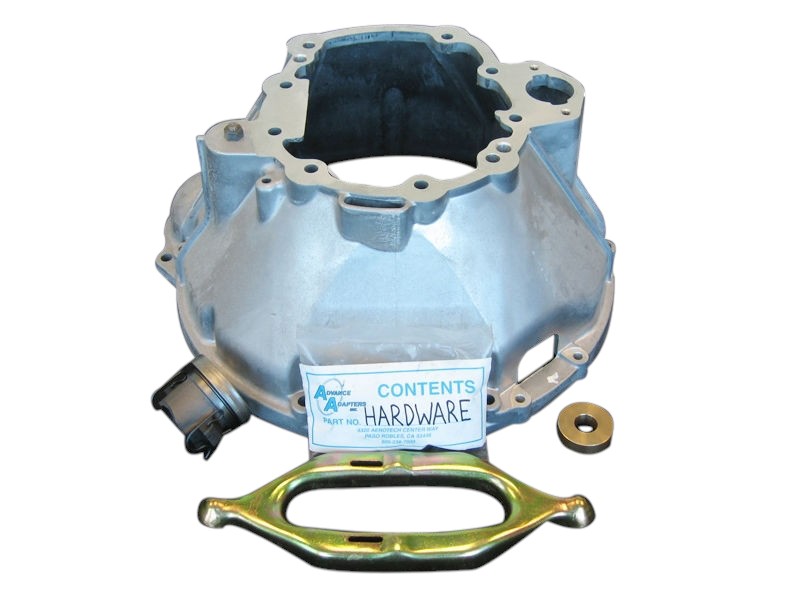

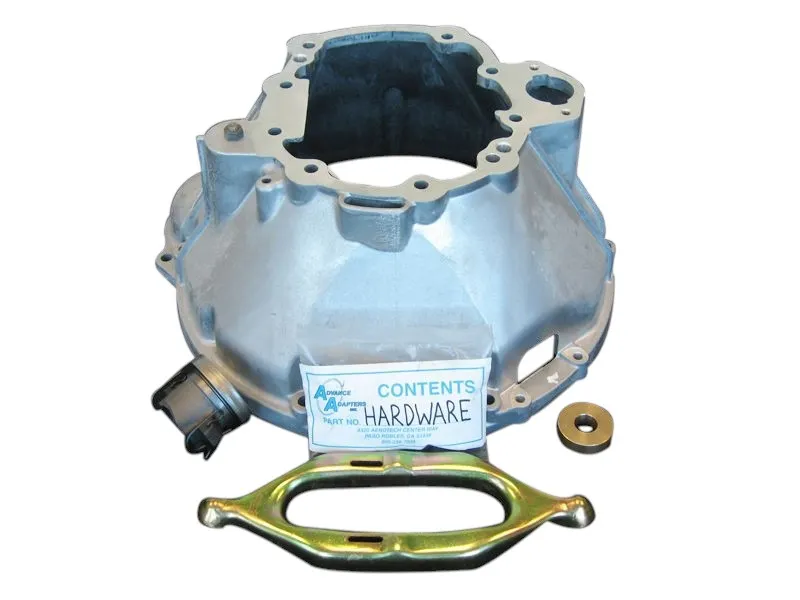

The bellhousing kit includes a Jeep bellhousing, release lever, release bearing, pilot bushing that fits .750" pilot tip, and fastening hardware. Our new bellhousing kit is designed for the 2005/06 new flywheel sensor location, this will allow you to replace the NSG370 transmission or 42RLE transmission.

Replaces the Jeep bellhousing 52107552

This bellhousing will work with all Jeep 4.0L up to 2004 as it also has the early flywheel sensor location, however, PN712590 is the kit designed for the early sensors location.

Note: AX15's 1989-1993 had an internal release bearing and a .590 pilot tip. When using this bellhousing on these transmissions you will also need a new front transmission bearing retainer PN716210 and a different pilot bushing PN716156GM or check out kit PN712590-IR

Options

P/N 716340 New Jeep NV3550 / AX15 external slave cylinder assembly.

Bill Of Materials

• PIVOT BALL-CLUTCH RELEASE ARM / 712586E
• JEEP 4.0 BH RELEASE ARM / 712590-B
• JEEP 4.0 BH RELEASE BEARING / 712590-C
• SPRING-CLUTCH RELEASE ARM / 712590-D
• BELLHOUSING- AX15/NV3550 TO JEEP 2005 - 06 / 712590-M
• .750 PILOT TIP/AMC BLOCK 1.818 / 716164
• 10mm X 1.25 X 30mm S.H.C.S. / 720030
• 1/4 -20 X 3/4 H.H.C.S. GRD 5 zinc / 722532
• LOCK WASHER 5/16 PLATED / 723103
• BOLT 5/16-18 X 0.50" HHCS PLTD / 723123
• 5/16 -18 X 1-1/4 H.H.C.S. / 723134
• NUT 3/8 -16 PLATED GRD 5 / 723701
• 7/16 INSIDE STAR WASHER / 724337
