Advance Adapter

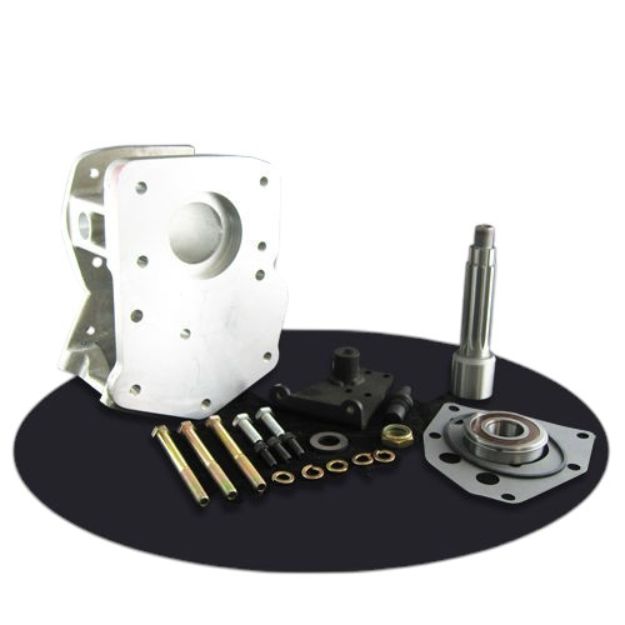

The GM 4L60E adapter to the Land Cruiser 10 spline transfer case is 6.750ā in length. And the overall length of the transmission and adapter is 30.50ā. The adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter housing, spud shaft w/ 10 spline, GM VSS sensor, t-case shifter bracket, retainer, sealed bearing, gasket, nylon lock nut, fastening hardware, and adapter instructions.
Transfer Case
This adapter assembly fits 1963-73 10 spline transfer cases. The drive gear has 10 internal splines and a diameter of 1.375ā. There cases are equipped with a vacuum style shifter.
Transmission
The adapter kit is designed for exclusive use with a 2wd 4L60E with a non-removable bellhousing. This transmission is identical to the 700R / 4L60 except that it is an electronically controlled transmission. GM manufactures this transmission in two versions. Both of these transmissions use a reluctor ring connected to the GM engine computer for proper shifting points.
The first version of this transmission is a mirror image of the 700R, but it requires a reluctor ring. For these kits we adapt around the 2WD version of this transmission. The kits require the use of a stock 2WD output shaft with the stock reluctor ring. You will be required to shorten this shaft as indicated on the instruction sheet provided in your kit.
This housing is drilled and tapped for the stock reluctor ring pickup. The GM sensor for this housing is included in this kit and allows the proper signal to operate your transmission.
Options
Transfer case crossmember. This popular design bolts on the back of the stock transfer case.
P/NĀ 716022 Crossmember
