42 STAINLESS HOSE W/YJ FITTING/INTERNAL BEARING 1993

SKU: 716130IR-93
$77.87
excluding shipping

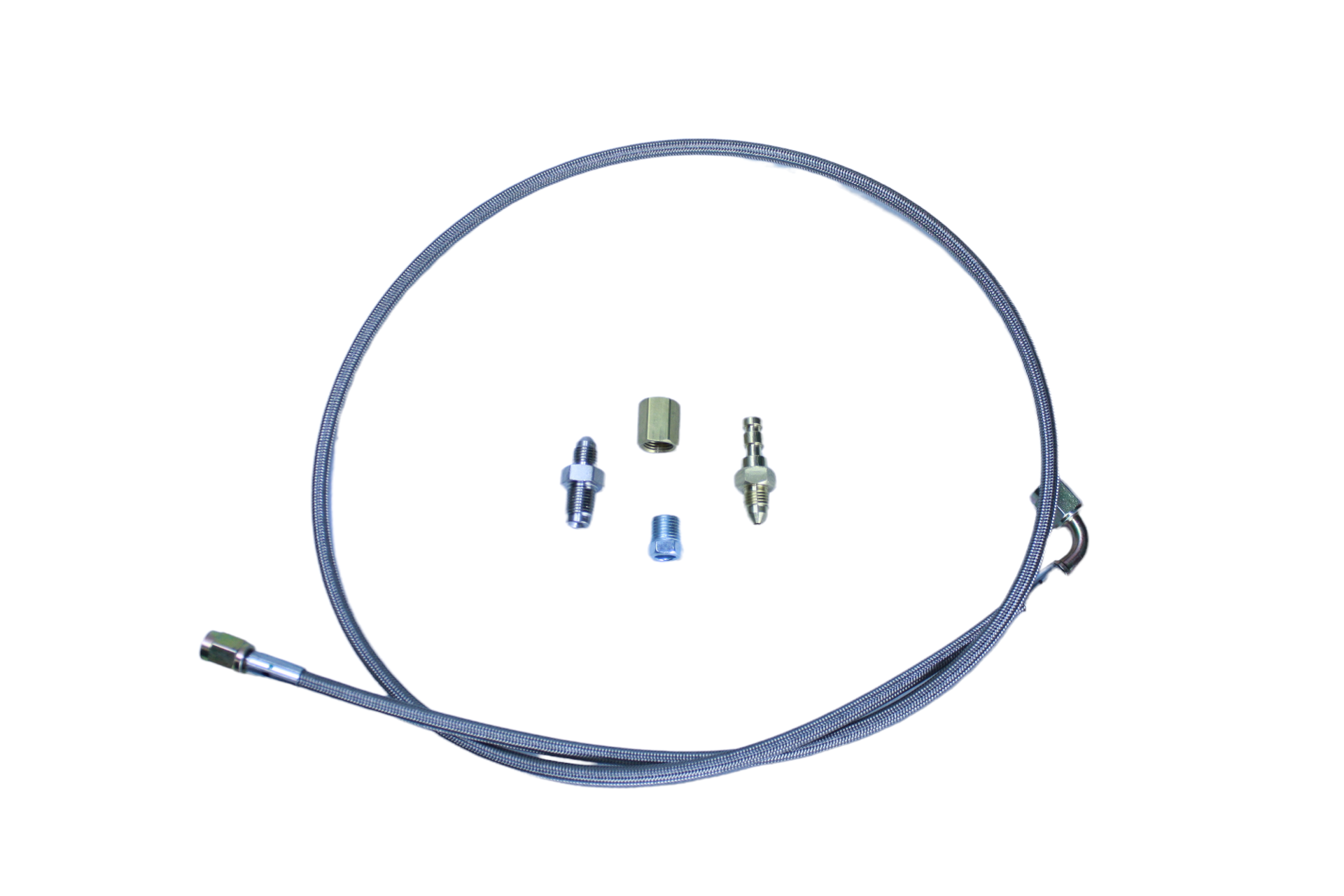

716130IR 42" Stainless Steel Hose and Fitting for 1987-1992 Jeep YJ Wrangler / Cherokee with Internal Hydraulic Release Bearings.
+ -

NOTE: Please down load the tech data. 1993 Jeeps this kit will not fit unless the pressure line is cut and a new brake fitting (male 7/16-24 inv) is installed with a flaring tool. The installer is responsible for these parts and tools.

716130IR 42" Stainless Steel Hose and Fitting for 1987-1992 Jeep YJ Wrangler / Cherokee with Internal Hydraulic Release Bearings.

This new slave hose comes with a pin-type fitting or a dash 3 that connects to the stock Jeep master cylinder. To remove the old slave cylinder hose, either unscrew the hose or if it is a later model Jeep locate the roll pin on the master cylinder. Remove the pin with a punch, and the hose should slide out. The rubber o-ring must be retained and installed onto the new brass fitting. The new fitting can then be installed back into the master cylinder and then be retained with the roll pin.

The internal release bearing should be equipped with a male fitting for the new hose. We have seen several other applications that include a quick disconnect and a female coupler system. On both of these variations, the quick disconnect or the female coupler just needs to be removed from the hose on the internal slave cylinder to expose the male fitting that works with our hose assembly.

The hose assembly must be bled to remove any air operation of the vehicle. We recommend that you remove the master cylinder cap and slowly depress the clutch. After several depressions, the hose assembly should be bled and the slave cylinder should be operational. Refill the master cylinder and replace the cap.

Bill Of Materials

Products specifications
Model YJ Wrangler
Make Jeep
*
*
*
