700R TO SCOUT DANA 300 T/C

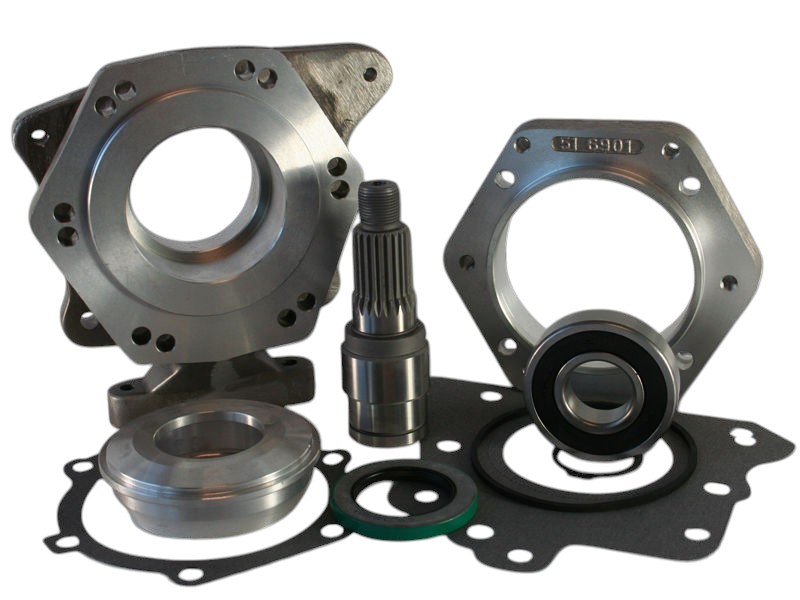

Kit 50-6907 will adapt a 700R / 4L60 / 4L60E transmission to Scout Dana 300transfer case. The adapter is 3.825" in length and manufactured using 356 T-6 heat treated aluminum alloy. The adapter kit includes an adapter housing, 27 spline x 23 spline spud shaft, Dana 300 bearing retainer, spud shaft bearing, snap rings, o-ring, gasket, fastening hardware and adapter instructions.

Transfer Case

The adapter assembly will only fit Scout Dana 300 with a 23 spline drive gears. These Dana 20 were used with Scout 727 automatics transmissions.

Transmissions

• 1982-93 model 700R / 4L60 transmission 4wd model
• 1994-96 4L60E transmission 4wd model. These model year transmission will require our PN716073E VSS kit.
• 1997 & up 4L60E / 4L65E transmission 4wd model. These model year transmission will require our PN50-0405E VSS kit.

Bill Of Materials

• SNAP RING (T350 & T400) / 716450
• SEALED BEARING 209RS / 716308
• GM AUTO TRANSMISSION O RING / 716511
• GM T400/4L80E 862-4709 GASKET / 716510
• SHAFT- SCOUT 23T SPUD GR. / 52-1301
• 700R REPLACING T400 1976-79 / 51-6901
• BEARING SEALED 307 Dana 18/20 / 716302
• BRG. RET (T86) and SNAP RING KIT Dana 18/20 / 716001
• T.C. GASKET/JEEP&TOY L/C / 716568
• NUT-NYLON LOCK 7/8 -16 / 728701
• ADAPTER- TH400 TO JEEP / 51-0600
• NUT 3/8 -16 PLATED GRD 5 / 723701
• 10mm-1.5THR X 40mm S.H.C.S. black oxide / 720046
• SEAL-INPUT SHAFT ATLAS / 300500
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• LOCK WASHER 3/8 ZINC / 723704
