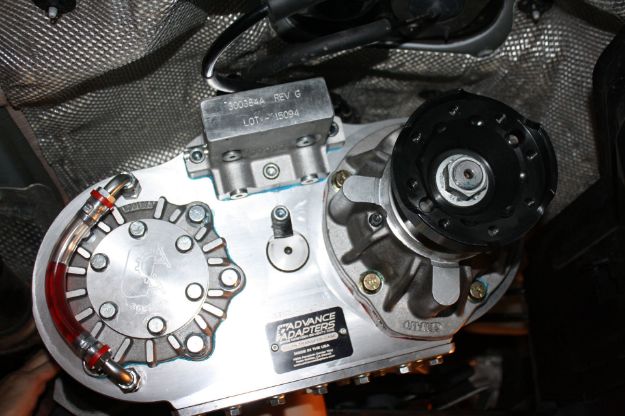

Atlas 2 speed to the 2018 and newer Jeep JL with 392 or the 4xE automatic transmission.
The Advance Adapters Atlas gear-driven transfer cases are the ultimate in gearing and strength. With over 30,000 units sold, the Atlas 2 speed is the solution for combining both on and off-road performance.
The name is legendary and synonymous with rock crawling and off-road vehicle performance. Atlas Transfer Cases have won over the industry for their superior performance, bullet proof design and their ability to get you anywhere you want to go. The Atlas Transfer Case is sure to change the way your vehicle performs off-road. You will benefit greatly by understanding the Atlas characteristics and how to apply them for the ultimate in performance!
Don't sweat it, order in confidence knowing that after placing your order, you will be contacted by one of our technical specialists to nail down the specifics on your application before your order leaves the building. Shop online with confidence knowing you will get the correct transfer case, accessories & support to make your installation a positive experience from the start.
Specifications:
- Gears.............Helical cut
- Case.......356-T6 Heat treated Aluminum
- Weight.....110 lbs. (dry)
- Bearings......Needle & taper rollers
- Lubrication.....2.0 Quarts (2 liters)
Gearing Options Available:
- High range.....1:1
- Low range......2.0:1 or 3.0:1 or 3.8:1 or 4.3:1
Features:
- Left case drop
- Bullet proof design
- Fully synchronized
- Shift-on-the-fly capability
- Cable shifters
- Twin Stick
- 2WD high, 4WD high,
- 2WD low (rear axle) - not available on a stock NP241 T/C
- 2WD low (front axle, allows front dig) - feature not available on a stock T/C
- 4WD low
Available Options:
- Installation kit which includes 2 Quarts of oil PNX11320
The Atlas is pre-configured which includes the adapter housing necessary when replacing the stock Magna transfer case.
Atlas includes: 50-9903 adapter and spud shaft kit. 303030 Cable shifter kit. The Atlas minus the gear ratio and the front and rear yoke. 301603 Site tube. 300477A computer integrated adapter for the elec-tronics.
JL and JT 2018 & newer Jeeps equipped with an automatic transmission will also require a Transmission Control Module flash to operate correctly with the new Atlas transfer case. Jeep coded the stock transfer case ratio of either the 2.72:1 or the 4.0:1 into this module and any different ratio in the transfer case will put the vehicle into a limp mode. A Jeep programmer like a Z Automotive Tazer works great. The exact ratios for the Atlas are required for repro-gramming the module. We round up or down to the decimal on our ratios; however, the Jeep computer module will accept the three places right of the decimal. The ratios are as follows: 2.0:1 is exactly 2.11:1, 3.0:1 is 3.030:1, 3.8:1 is 3.824:1, 4.3:1 is 4.286:1, and 5.0:1 is 5.048:1.
