Advance Adapter
This adapter bellhousing assembly is used to adapt the AMC / Jeep 4.0L, 258, 304, 360, and 401 to the GM SM465 4 speed transmission and the 1993-95 GM NV4500

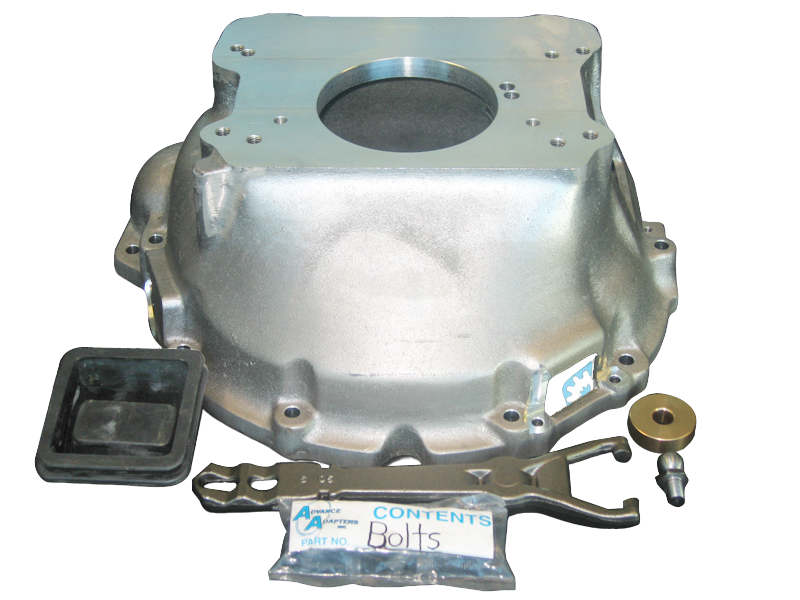

The bellhousing kit includes a 356 T-6 aluminum bellhousing, pilot bushing, throw-out arm, ball pivot, throw-out boot, fastening hardware, and adapter instructions.
Note: This bellhousing features two crankshaft positioning sensor locations for the 1987-2004 4.0L & 2005-06 4.0L engines.
Transmission
This adapter assembly is designed for exclusive use with the GM SM465 4 speed manual. This top loaded heavy-duty transmission has a cast iron case, and is 12" in length. It was used in GM trucks from 1968 to 1988. The SM465 was used in both 2wd & 4wd applications with 3 various output shaft spline counts of 10, 32, & 35 splines.
Note: Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!
Optional items:
P/N 716331 Slave cylinder
P/N 716130-60 slave cylinder hose
Bill Of Materials
712571
