SM465 10SPL TO DANA 300 SHORT

Advance Adapter

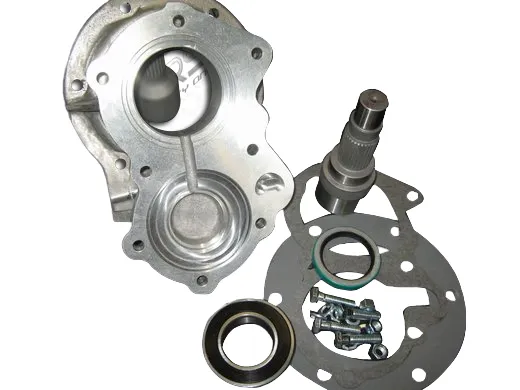

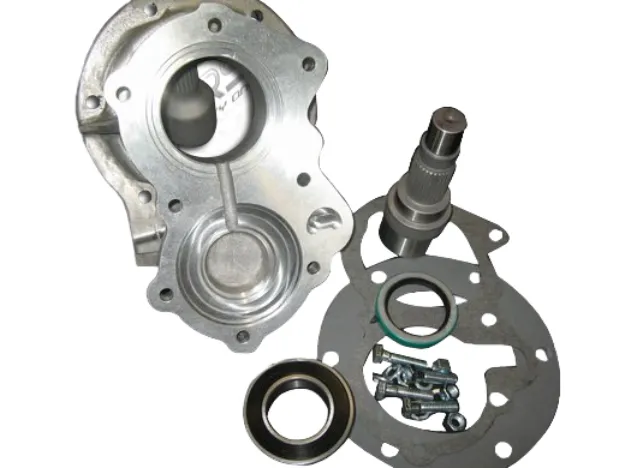

This adapter kit will allow you to adapt the GM SM465 4wd, 4 speed transmission to the Jeep Dana 300 transfer case. The adapter is 3.5 in length and is made from strong 356 T-6 heat treated aluminum alloy. The adapter kit includes a adapter housing, new Dana 300 10 spline input shaft, gaskets, seal, fastening hardware, and adapter instructions.

Transfer Case

The adapter assembly fits the1980-86 Jeep Dana 300.

Transmission

This adapter assembly is designed for exclusive use with the 4wd, GM SM465 4 speed manual with a 10 spline output shaft. This top loaded heavy-duty transmission has a cast iron case, and is 12" in length. It was used in GM trucks from 1968 to 1988. The SM465 was used in both 2wd & 4wd applications with 3 various output shaft spline counts of 10, 32, & 35 splines.

Bill Of Materials

• ADAPTER- SM465 TO D300 & Atlas / 51-9807
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• LOCK WASHER 3/8 ZINC / 723704
• H.H.C.S. 3/8 -16 X 1-1/2 gr. 5 zinc / 723723
• 3/8 -16 X 1-1/2 S.H.C.S. zinc / 723740
• NUT 3/8 -16 PLATED GRD 5 / 723701
• SEALED BEARING 209RS / 716308
• SHAFT- D300 INPUT 10SP / 52-9810
• GASKET-SM465 / 716515
• SEAL FOR NEW VENTURE ADAPTERS / 716749
• GASKET-N.P.208 TRANSFER CASE / 716517
