4L60 TRANS TO DANA 300

Advance Adapter

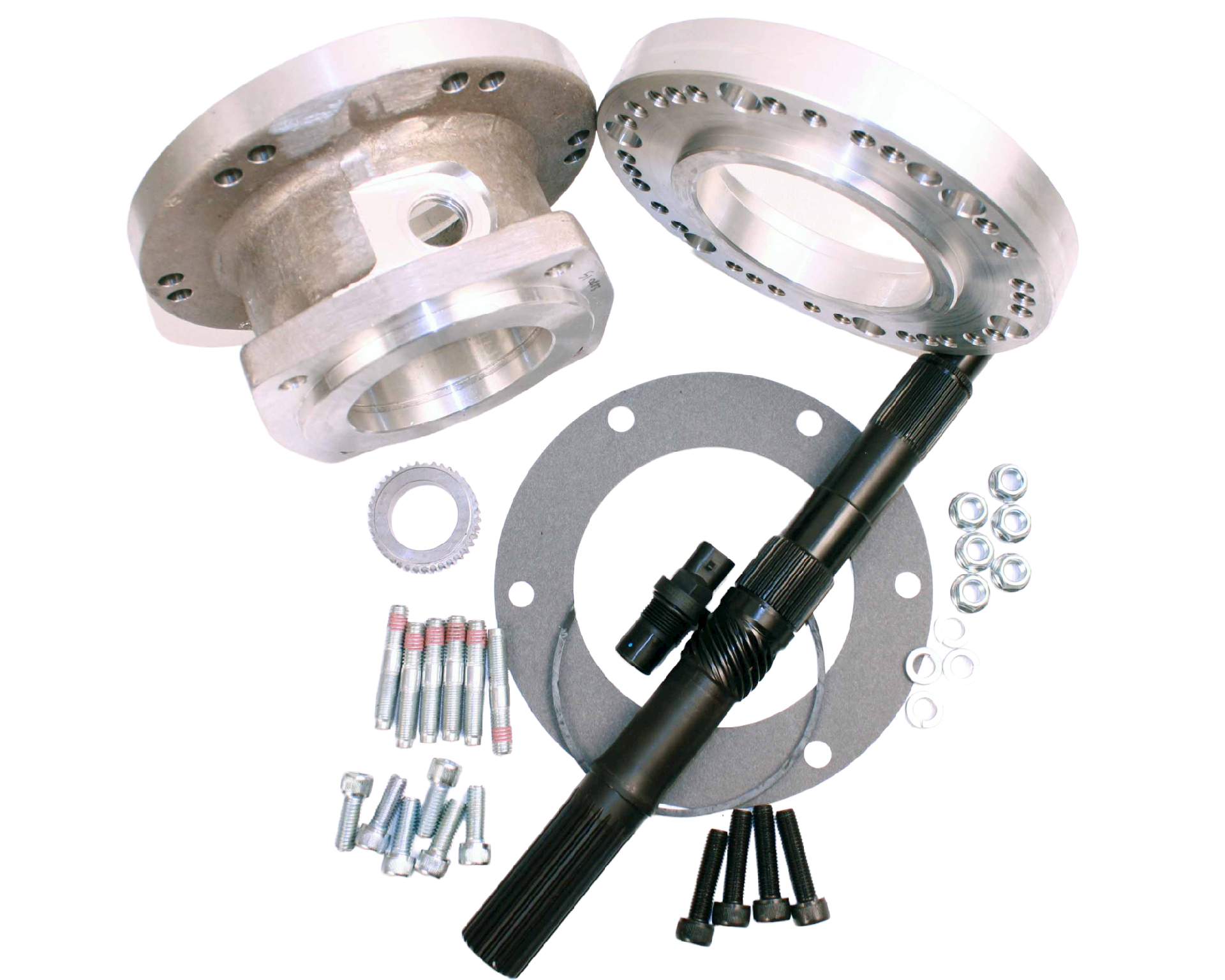

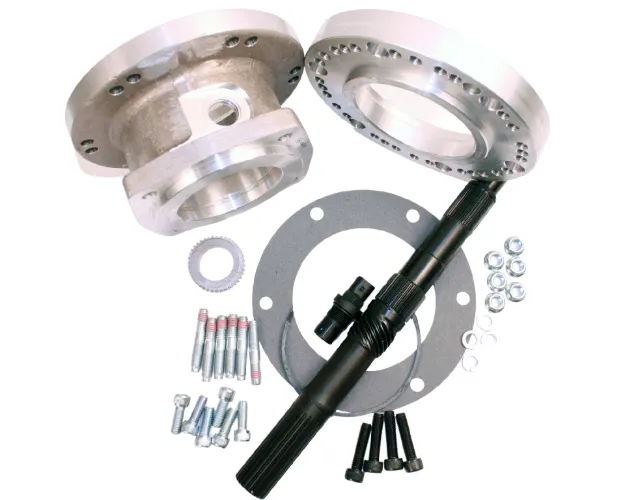

The GM 4L60E adapter to the Jeep Dana 300 is 3.625" in length. And the overall length of the transmission and adapter is 27.00". Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision for a transmission mount. The adapter kit includes an adapter housing, Dana 300 input shaft, GM VSS sensor, reluctor ring, o-ring, gasket, fastening hardware, and adapter instructions.

Note: This kit use a 4WD stock GM output shaft. If you have a 2WD transmission, we offer a new transmission output P/N 52-7460.

Transfer Case

Jeep Dana 300 1980-1986.

Transmission

The adapter kit is designed for exclusive use with a 1993-96 (4 Wheel Drive) 4L60E with a non-removable bellhousing. A 2WD transmission can be used with the installation of a 4WD shaft.

Options

P/N 716021 Heavy duty transmission mount

Bill Of Materials

• 700R 4X4 TRANS X JEEP DANA 300 / 50-6309
• RELUCTOR- 4L60 INTEGRAL CLAMP / 716074
• RELUCTOR SENSOR 15547452 / 716071
• BUSHING- SENSOR 4L60E / 716073B
• HEX NUT 7/8 -16 JAM NUT / 716073N
• SPACER WASHER FOR 4L60E SENSOR / 716073W
• ALLEN WRENCH- 1/8 / 715599B
