TOY.L/C.16SP/GM V8 KIT(GM NV)

SKU: 27-0021G

Be the first to review this product

Price: $1,222.77

excluding shipping

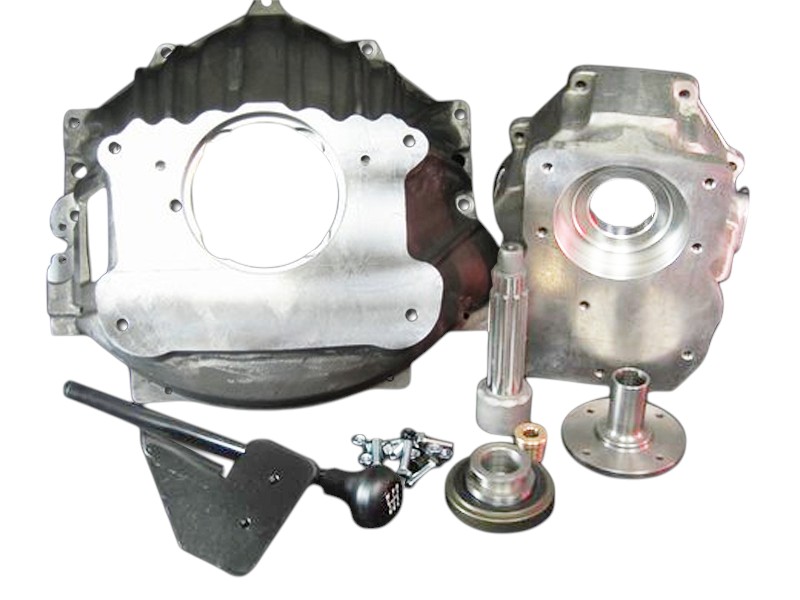

Adapts GM 32 Spline NV4500 to Chevy V8 small block & Toyota Land Cruiser 1974 - July 1980 16 spline Transfer Case.

Availability:

Qty:

i h

1. 1 Kit 50-0213 GM NV4500 / TOY. L.C. 16 SPL.

2. 1 Kit 712576 NV4500-1996 GM BHSG ADAPT. KIT

3. 1 Kit 716050C NV4500 SHIFTER HANDLE ASSY.

4. 1 Kit 716288 TOY. L/C SLAVE CYL. BRKT. NV4500

5. 1 Kit 716316 T/O BEARING ASSY. L/C 3SP

INSTALLATION NOTES:

This kit is designed to fit the GM NV4500 transmission. Several adapter kits require you to shorten the existing transmission main shaft while it is still in the transmission case. This is common when a 4WD GM NV4500 is being used. Each instruction sheet gives the exact cut off location. Also refer to the pictures:

Bill Of Materials

Products specifications

Engine	Chevy Small Block V8 Gen 1 & 2 Articles: 1. Chevy & GM Engines
Engine	Chevy 4.3L V6 & 3.8L V6 Articles: 1. Chevy & GM Engines
Transfer Cases	Toyota Land Cruiser (1974-July 1980) - (16 Spline Input) Articles: 1.Toyota L/C Transfer Case 2. Toyota L/C Orion Transfer Case 3. Toyota L/C Twin Sticks & Front Drive Shaft Kits
Transmissions	New Venture NV4500 Manual 4 Wheel Drive GM 1996-2003 Articles: 1. NV4500 Specifications
