DODGE & GM(10/27) NP205-29SPL INPUT TO DODGE NV4500 29 SPL TRANS

Advance Adapter

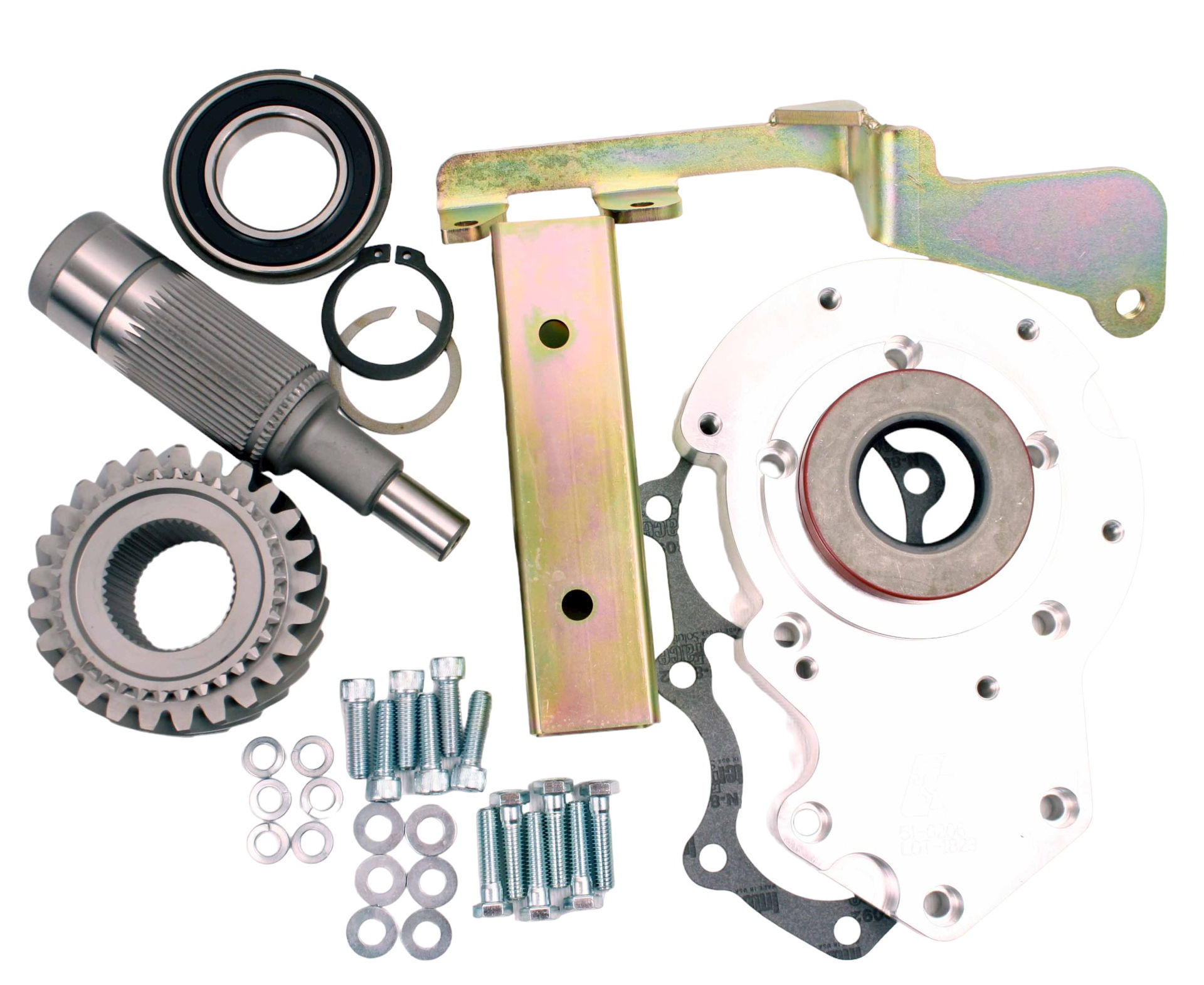

This adapter assembly will adapt a 4wd Dodge NV4500 29 spline to either GM & Dodge NP205 Figure 8 bolt pattern NP205's. The adapter kit includes a new female 29 spline NP205 input gear and shaft, NP205 / NV4500 adapter, NP205 transfer case shifter support bracket, snap ring, gasket, seal and fastening hardware.

Transfer Case

The kit is designed for GM NP205 figure 8 front bolt pattern NP205 10, 27 or 32 splines and Dodge NP205 figure 8 bolt pattern 23 & 29 spline NP205 transfer case. Please note that there is no machine work needed on the GM & Dodge NP205 with big bearing bore cases ( 29 & 32 spline inputs). Note: Small bearing bore case Dodge 23 spline & GM 10, 27 spline NP205 transfer cases will need the front input bearing bore machined to big bore specifications.

Transmission

The adapter kit is designed for exclusive use with a Dodge 4WD NV4500Transmission with a 29 spline output shaft.

Bill Of Materials

• SNAP-RING EXT INPUT GEAR NP / 340407
• ADAPTER- NV4500 TO NP205 T/C / 51-0206
• GEAR- NP205 INPUT 46T / 52-9600
• SHAFT- NP205 INPUT 29T / 52-9601
• BRACKET- LINKAGE NV4500 TO NP205 / 715529
• SPACER- NV4500/NP205 CROSSMEMBER TUBE / 716056
• BEARING 6210-T/C INPUT GEAR BEARING / 716315
• SNAP RING-EXTERNAL 1 15/16 / 716467
• SEAL CR#19466 / 716729
• LOCK WASHER 3/8 ZINC / 723704
• H.H.C.S. 3/8 -16 X 1-1/2 gr. 5 zinc / 723723
• BOLT 3/8 -16 X 1.25" SHCS ZNC / 723730
• WASHER 3/8 SAE FLAT PLT / 723735
• NP205 gasket / 716574
• HEX NUT 9/16 -12 PLATED / 725603
