DANA 300/GM V8 B/H KIT(D23)

SKU: 27-0001

$762.30

excluding shipping

Adapter package to mate the Dodge 23 spline NV4500 to the Jeep Dana 300 Transfercase & the GM small Block V8 engine.(full bellhousing kit)

Availability:

Qty:

i h

Digital Downloads

27-0001

Overview
Specifications
Contact Us

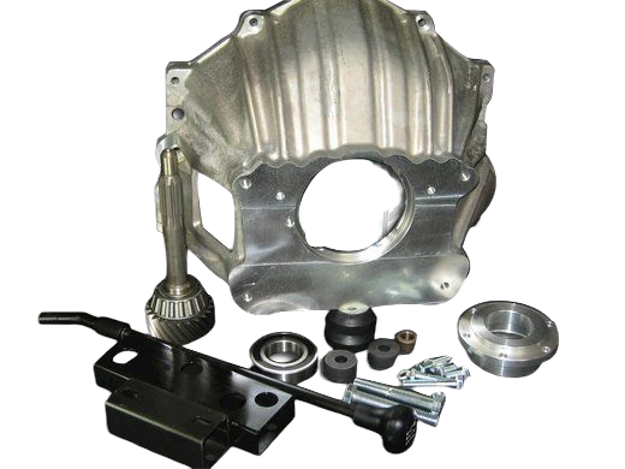

KIT CONSISTS OF:

No. Qty Part No. Description

(1) 52-0221 NV4500 GM INPUT SHAFT 1-1/8"
(1) Kit 712576 NV4500-1996 GM BHSG. ADAPTER KIT
(1) Kit 716021 DANA 300 CROSSMEMBER MOUNT
(1) Kit 716048 DANA 300 CROSSMEMBER SPACER
(1) Kit 716050D1 NV4500 SHIFTER HANDLE ASSY.
(1) Kit 716221 DANA 300/NV4500 RETAINER KIT

INSTALLATION NOTES:

This kit is designed to fit the Dodge Standard Duty NV4500 transmission. The front bearing retainer must be removed with the stock input shaft. Install the new GM style input shaft provided. The bearing retainer must be modified as listed on the 712576 Instruction Sheet.

Bill Of Materials

Products specifications

Engine	Chevy Small Block V8 Gen 1 & 2
Engine	Chevy 4.3L V6 & 3.8L V6
Transfer Cases	Jeep Dana Spicer 300 (23 Spline Input)
Transmissions	New Venture NV4500 Manual 4 Wheel Drive Dodge 1999-2000
Transmissions	New Venture NV4500 Manual 4 Wheel Drive Dodge 2001-2005
